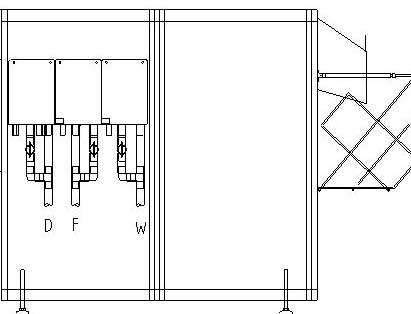

Printing Hints: When you have found your processor start with a printout of of the Processor exploded drawing it makes it easier to overview the partlist structure. The best printout result is in color on an inject printer. Some laser printers may have problems in converting colors to black and white
1 103650
Covering Pl. EG 751 CPMZ
No relevant drawings available
2 113506 Electronics cables EGxx1
CPMZ
Panel ( Picture)
305479 Electronic (Picture)
3 193650 Accessories, EG 751
No relevant drawings available
4 203650 Frame w.Access.EG 75x
RAL7037
No relevant drawings available
5 303831 Tanks w.access. EG751
No relevant drawings available
6 305239 Main geartrain Dev,
console L
305239 Main geartrain Dev, console L
7 305249 Geartrain Dry, console
/70161
305249 Geartrain Dry, console /70161
8 305259 Tank support, console R EGxx1
No relevant drawings available
9 503505 Drains & Tubes EG75x
5/8-3/4"
No relevant drawings available
10 315450 Pump support 3pumps+MV. EG75x
315459 Pump assy. 3pumps+MV. EG75x (Comming
version)
11 316698 Blower chann. radial 3x1000W
316698.pdf Blower chann.
radial 3x1000W
12 315816 Dev rack 75 R43 1 7/8
5974.pdf Roller & guide pos. R43 1 7/8
13 315826 Fix rack EG751 R43 1 7/8
5974.pdf Roller & guide pos. R43 1 7/8
14 315836 Wash rack EG751 R43 1 7/8
5974.pdf Roller & guide pos. R43 1 7/8
15 315108 Dry Rack R60
HTD ALU EG751
315108 Dry Rack R60 HTD ALU EG751 (320108)
Sub drawings to Racks
320615 Guide top compl 90cm (65454)
136616 Guide bar w.117588 36" M5
136654 Guide bar w.250514 36" 2xM5
320615 Guide top compl 90cm (65454)
155349 Torque Clutch 79T/10ø
Compl.
68325 Torque Clutch 80T/10ø Compl.
117835 Rackside L.Bl.Gears R43 1 7/8 (117815)
117845 Rackside R.Bl.Gears R43 1 7/8 (117825)
117588 Crossover Guide, Arnite
16. Conveyor
129407 Conveyor rack Dolev 4pressXLE
Link to Manual On-line section EG751 f. Dolev 4PressV
* Older versions
When ordering parts you should always state the s/n and type/part number of the processor. Eg. s/n 01121234 Part no: 317990
If you did not find the drawing information you were looking or find errors please send an email to the Echo Graphic Service department. Send an email to Echo Graphic
