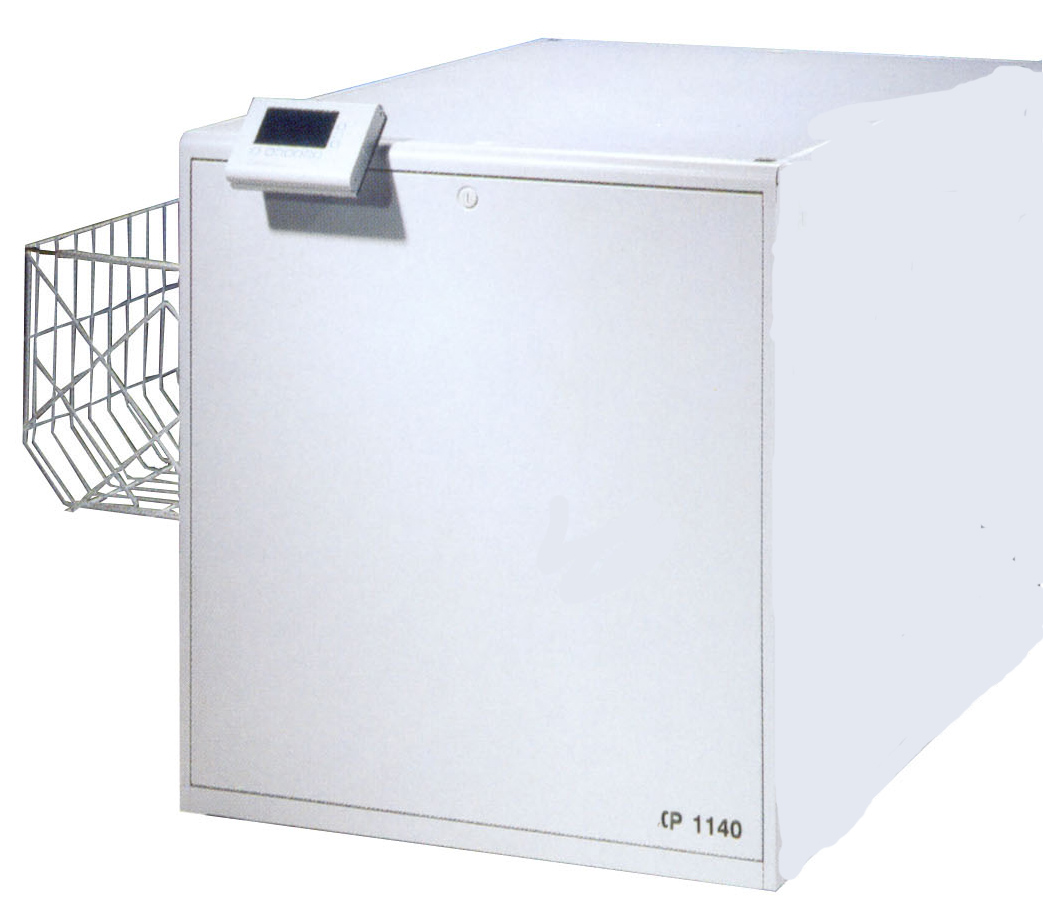

| Partlist for Hope Processor EP1140 Camera #330810 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Printing Hints: When you have found your processor start with a printout of of the Processor exploded drawing it makes it easier to overview the partlist structure. The best printout result is in color on an inject printer. Some laser printers may have problems in converting colors to black and white
Processor Exploded Drawing 330810
10
103541 Covering plates EP 1140 CPMZ
103541.pdf
Covering parts
15
113540 Electronics Cables EP1140 CPMZ
113540.pdf Electronics Cables EP1140
CPMZ
305439.pdf MISSING (MK3)
Panel.pdf
6355.pdf
Interconnection diagram
*80
330811 Cableset Cbox - camera
*81 890689 Cablelink IF/Mainboard
*82 305410 On-line/serial interf.PCB EG
* Please see on-line section
20
193847 Accessories, EP 1140 Camera
193847.pdf Accessories, EP 1140 Camera
305556.pdf Act.repl.cont.30L Level
alarm
305557.pdf Stab.repl.cont.30L lev. alarm
305569.pdf Waste cont. 30L Level alarm
25
203541 Frame w.access.EG1140 CPMZ
203541.pdf Frame w.access.EG1140 CPMZ
32
330531 Tank support,console right
330531.pdf Tank
support, console right
35
316249 Main gear train/tanksupport L
316249.pdf
Main Gear train/Tank support left
45
503540 Drains & Tubes EPxx0
503540.pdf Drains & Tubes EPxx0 *na*
50
330456 Pump supp. 2xMD10+MV+heatex
330456.pdf Pump supp. 2xMD10+MV+heatex
52
316359 Lid opener kit EG/EP XX0
316359.pdf Lid opener kit EG/EP XX0
55
316698 Blower chann. radial 3x1000W
316698.pdf
Blowerchann. radial 3X100W
60
330946 Act rack 114cm R18 Camera
330946.pdf
Act rack 114 cm R18 Camera
65
330952 Stab rack 114cm R18 Camera
330952.pdf Stab rack 114 cm R18 Camera
70
330962 Wash rack 114cm R18 Camera
330962.pdf Wash rack
114 cm R18 Camera
75
330218 Dry rack 22+2 roll R38 EP1140
330218.pdf Dry rack 22+2 roll R38 EP1140
Sub drawings to Racks
155349.pdf
Torque Clutch adjustment 79T.
155359.pdf Torque Clutch adjustment
80T.
305345.pdf Rackside L Gear R18 Camera.
305365.pdf Rackside R R18 Camera.
330596.pdf Drive axle 1143 Ø14 80T /
24T PP.
330825.pdf Guide Outlet.
330627.pdf Guide Inlet.
330635.pdf Guide Outlet.
